3D Design

See the room before it exists

Every job is drawn in 3D and revised until you are sure. The render you approve is the kitchen that gets built.

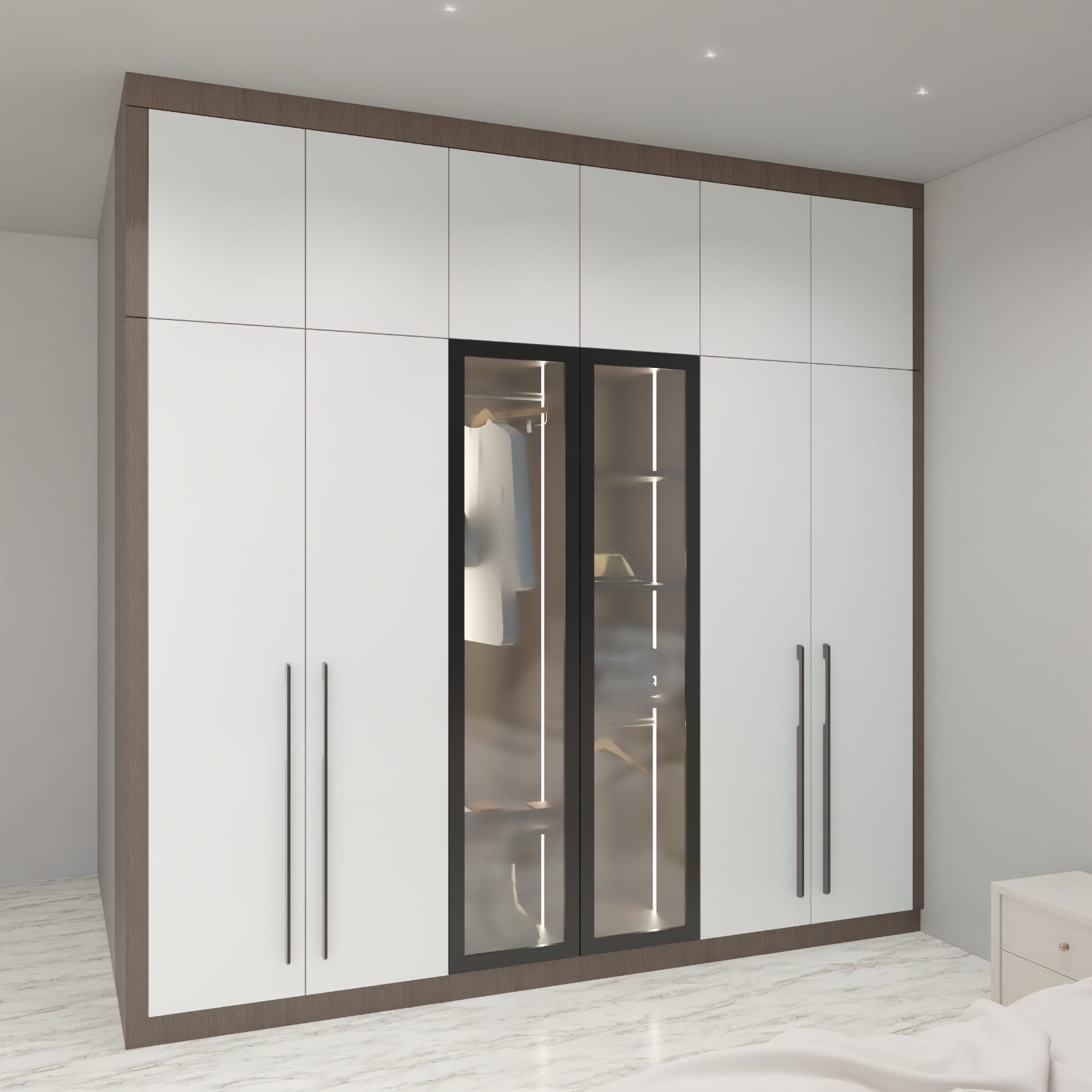

A 3D render of a six-door hinged wardrobe in white with a wood surround and two backlit glass-fronted centre sections

Interiors are difficult to buy because you are paying for something you cannot see yet. A quote on paper and a few reference photos leave you guessing at proportion, at how a finish will read in your own light, at whether the tall unit will crowd the doorway.

So we model the room properly in AutoCAD and 3D before anything is cut — your actual dimensions, your actual window positions, the real beam in the real place. You get views from where you will actually stand, and we change them as many times as it takes. Moving a shutter in a drawing is free. Moving it after fabrication is not.

It is also how we hold ourselves to account. Ask to see the approved render beside a photograph of the finished room for a job like yours — a designer who avoids that comparison is telling you something.

What the price includes

Measured drawings from our own site visit, not your builder's plan
3D views from natural standing positions in the room
Elevations with dimensions for every run of cabinetry
Finish and material options shown in place, side by side
Revisions until the design is signed off
The approved drawing set sent to the manufacturers as-is

From our drawings

Renders we have put in front of clients.

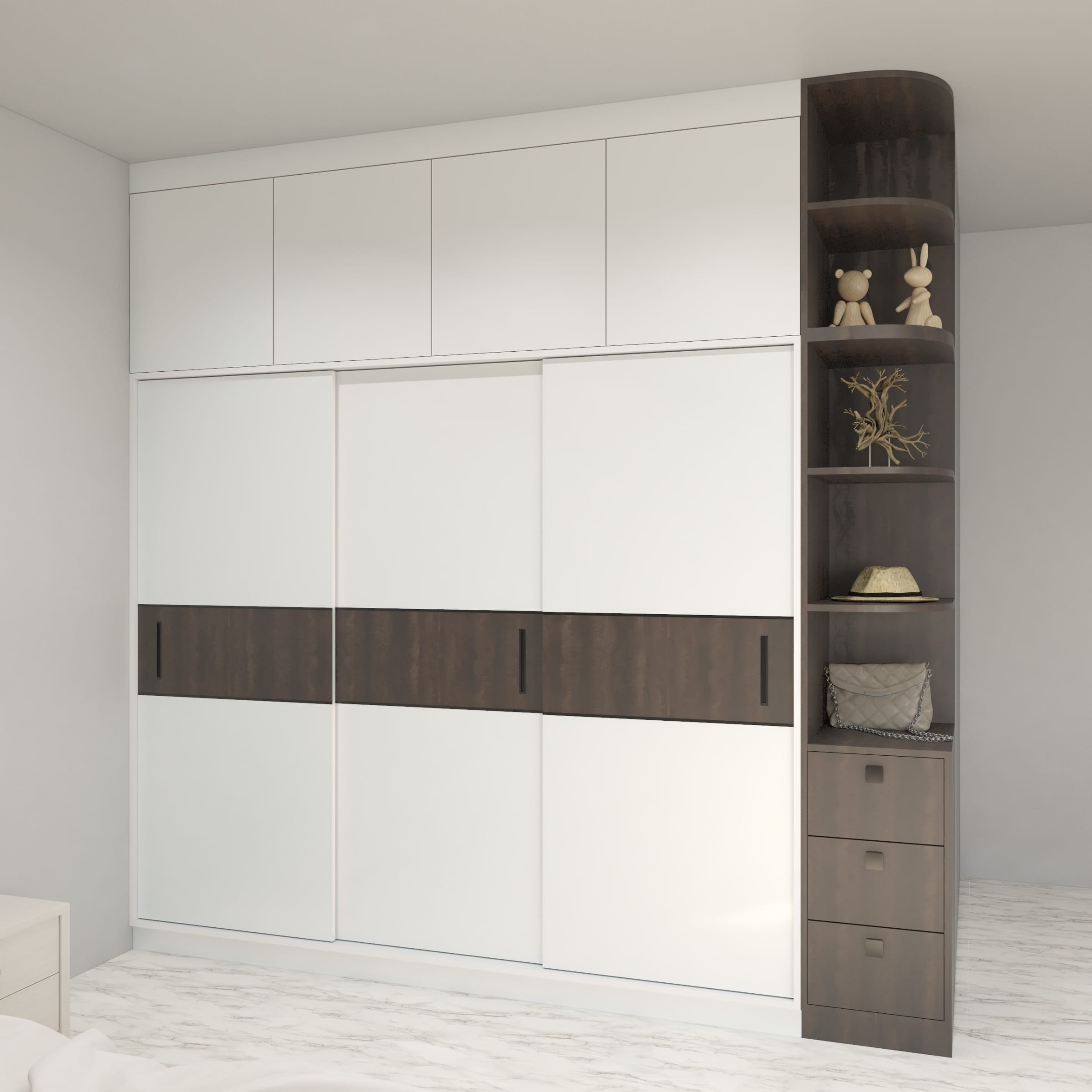

A 3D render of a three-panel sliding wardrobe in white with a dark wood band, loft units above and a display column beside it — A sliding wardrobe as presented for approval — shutter line, band height and the display column all settled on screen first. It was built: the comparison is on the Salempur project page.

A 3D render of a slatted wooden partition with open shelving, beside a wall-hung vanity with a vessel basin and round mirror — A partition drawn against the real room, so the shelf spacing could be judged before anything was cut.

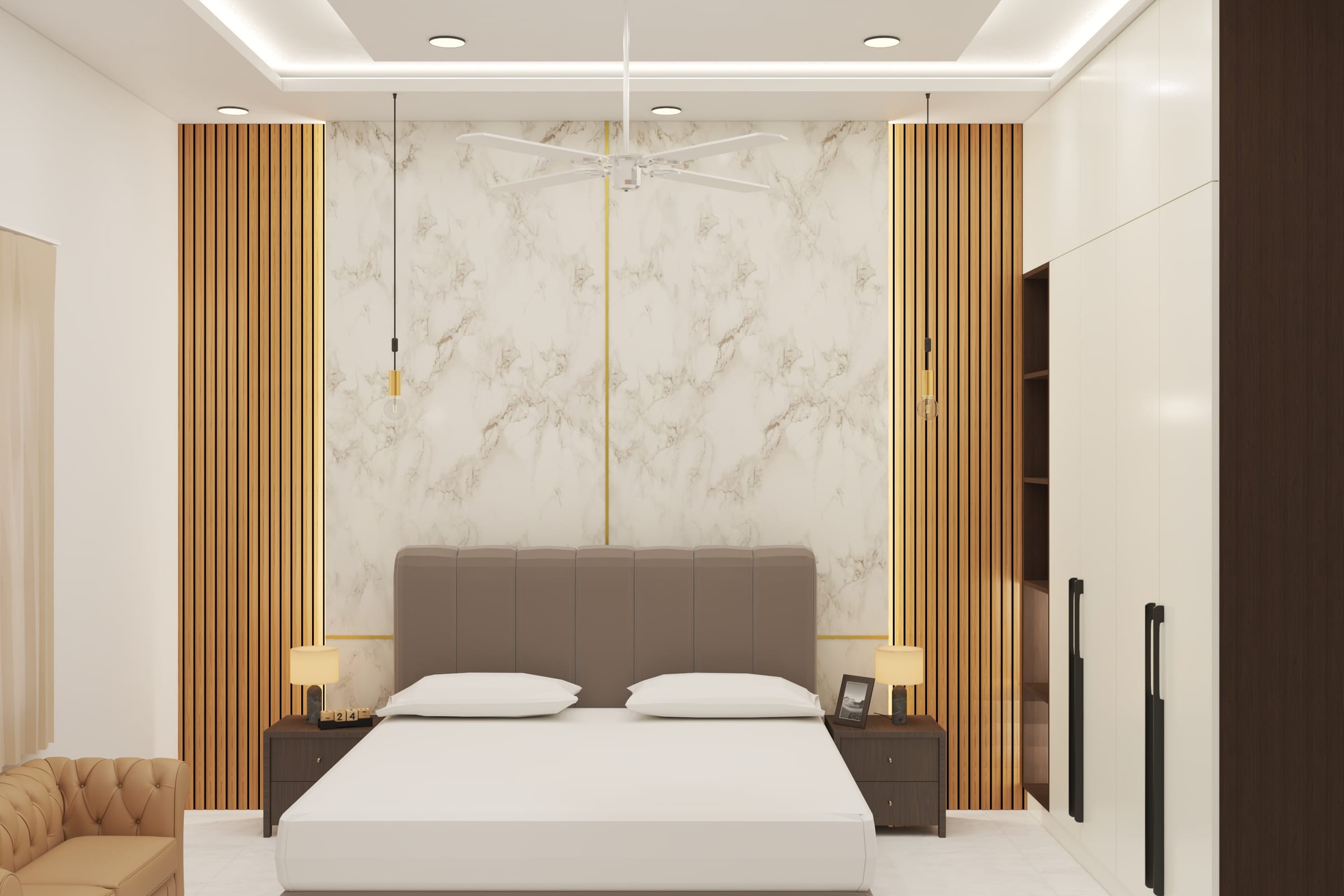

A 3D render of a bedroom headboard wall in veined marble, flanked by fluted wood panels with slim gold inlay lines — A headboard wall drawn in marble with fluted flanks. Seeing the inlay lines at this size is how you catch that they are too busy.

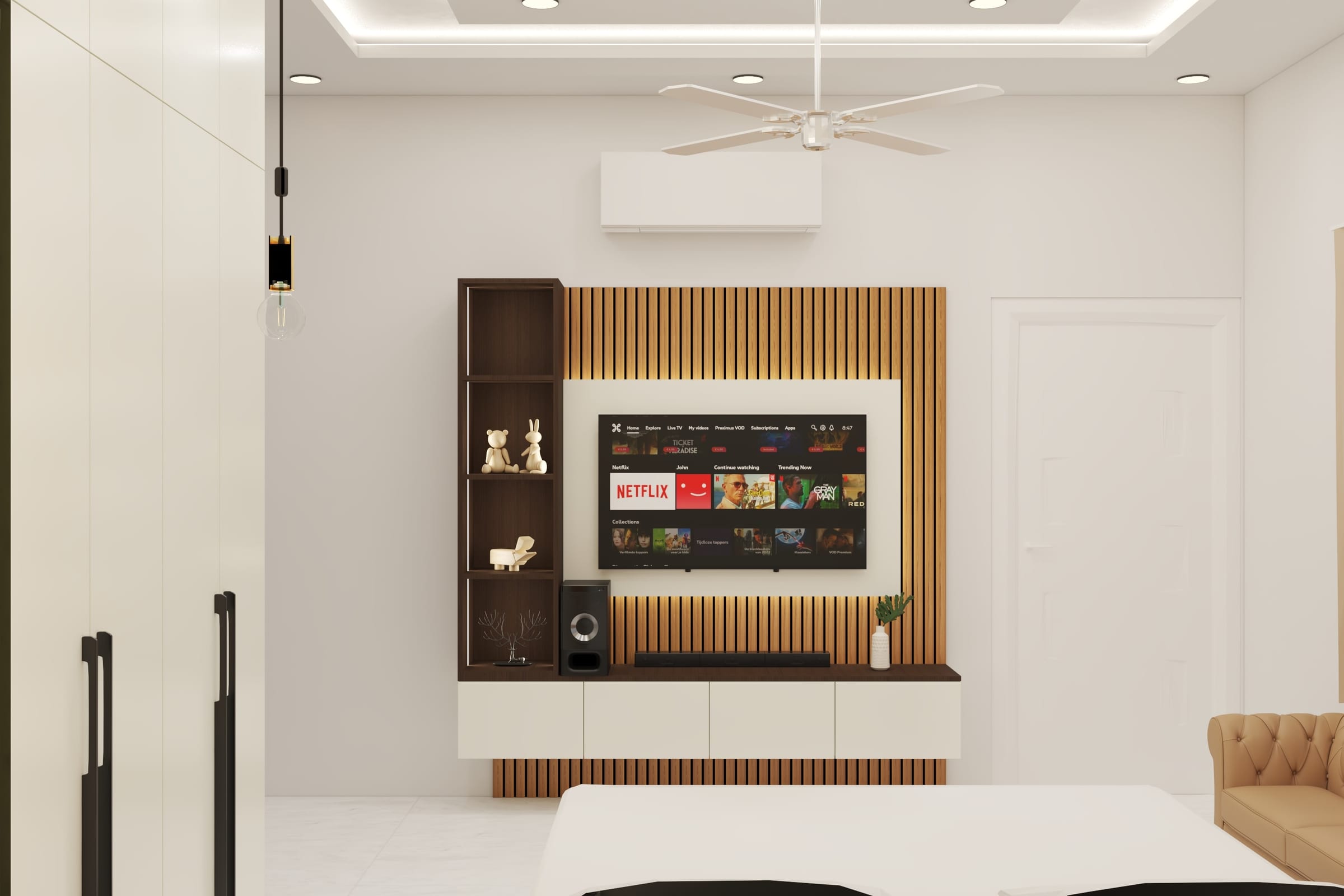

A 3D render of a bedroom television wall in fluted wood with a recessed screen niche and low storage beneath

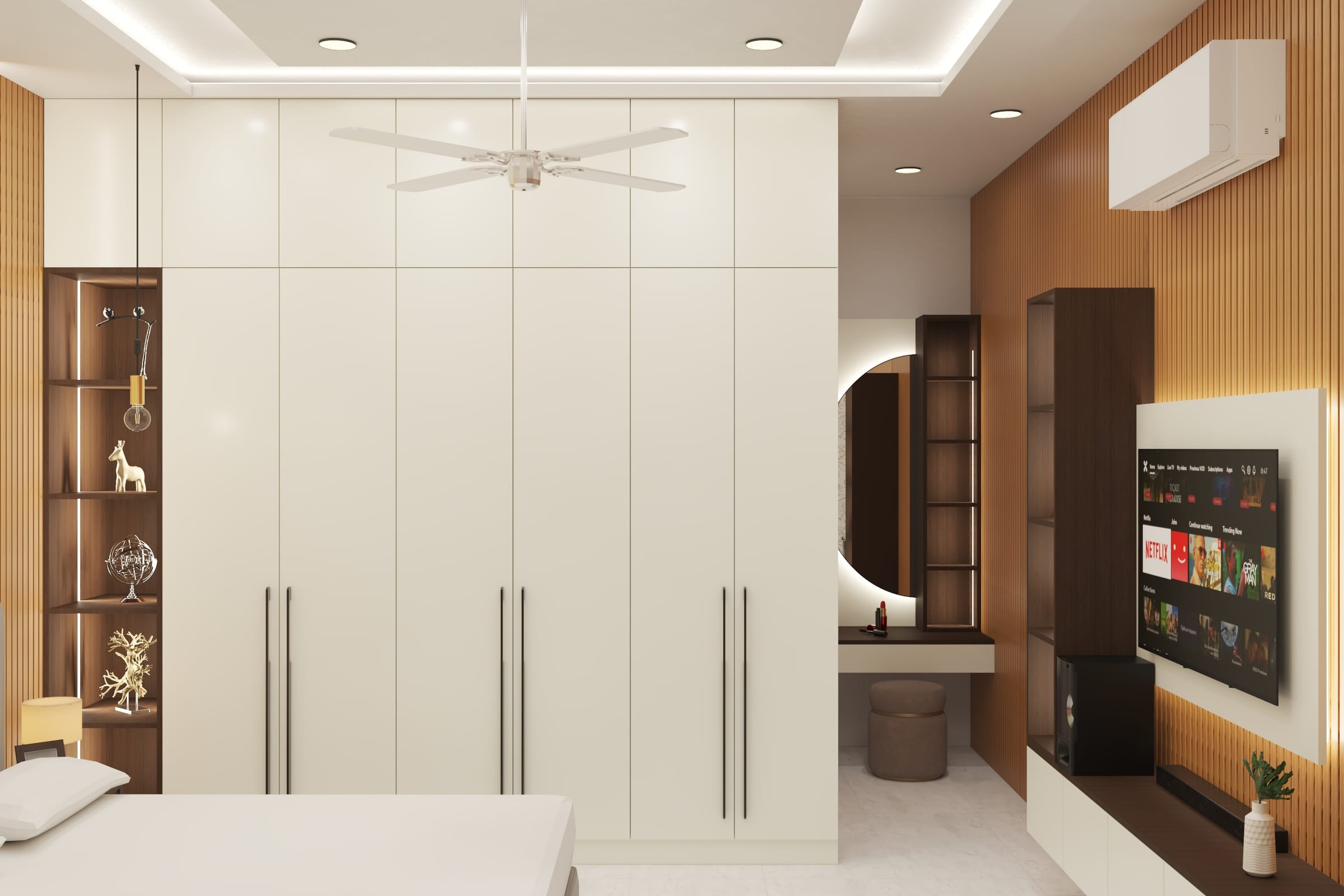

A 3D render of a bedroom wardrobe run with a mirrored dressing section and loft storage above

A 3D render showing a full bedroom elevation, with the bed, wardrobe run and side tables drawn together — The whole room in one frame. Judging a wardrobe on its own is how you end up with a door that fouls a bedside table.

A 3D render of an L-shaped kitchen with bronze gloss shutters, a black granite counter and black-framed open niches

A 3D render of the corner of the same L-shaped kitchen, showing the tall unit and the return of the counter — The corner is where kitchen drawings earn their keep — it is the one place a tape measure and a guess will not agree.

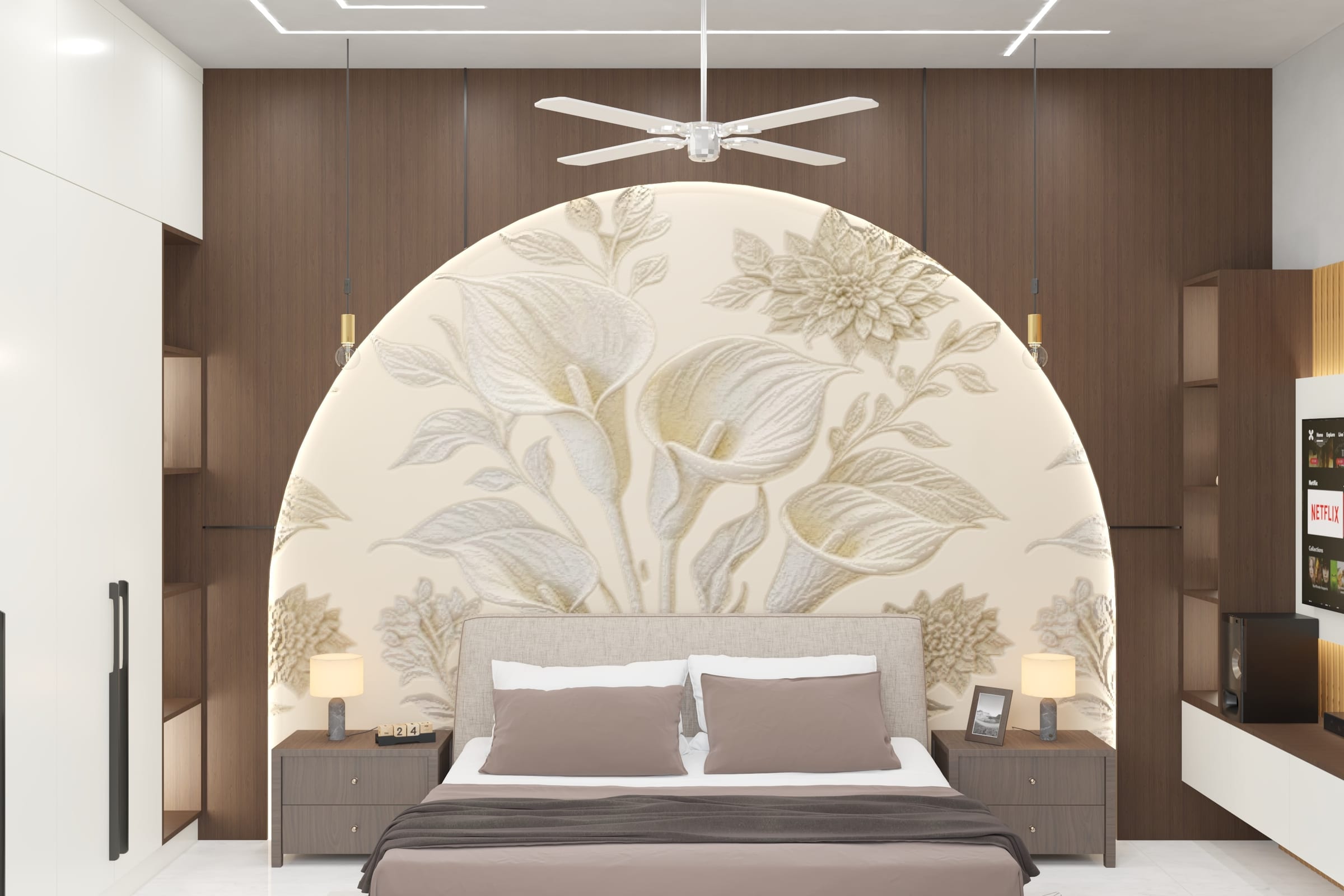

A 3D render of a bedroom headboard wall built around a tall arched panel with a carved floral face, flanked by wood panelling — The arch for the Karim Nagar bedroom, drawn with a carved floral face. It was built in a textured moon finish instead.

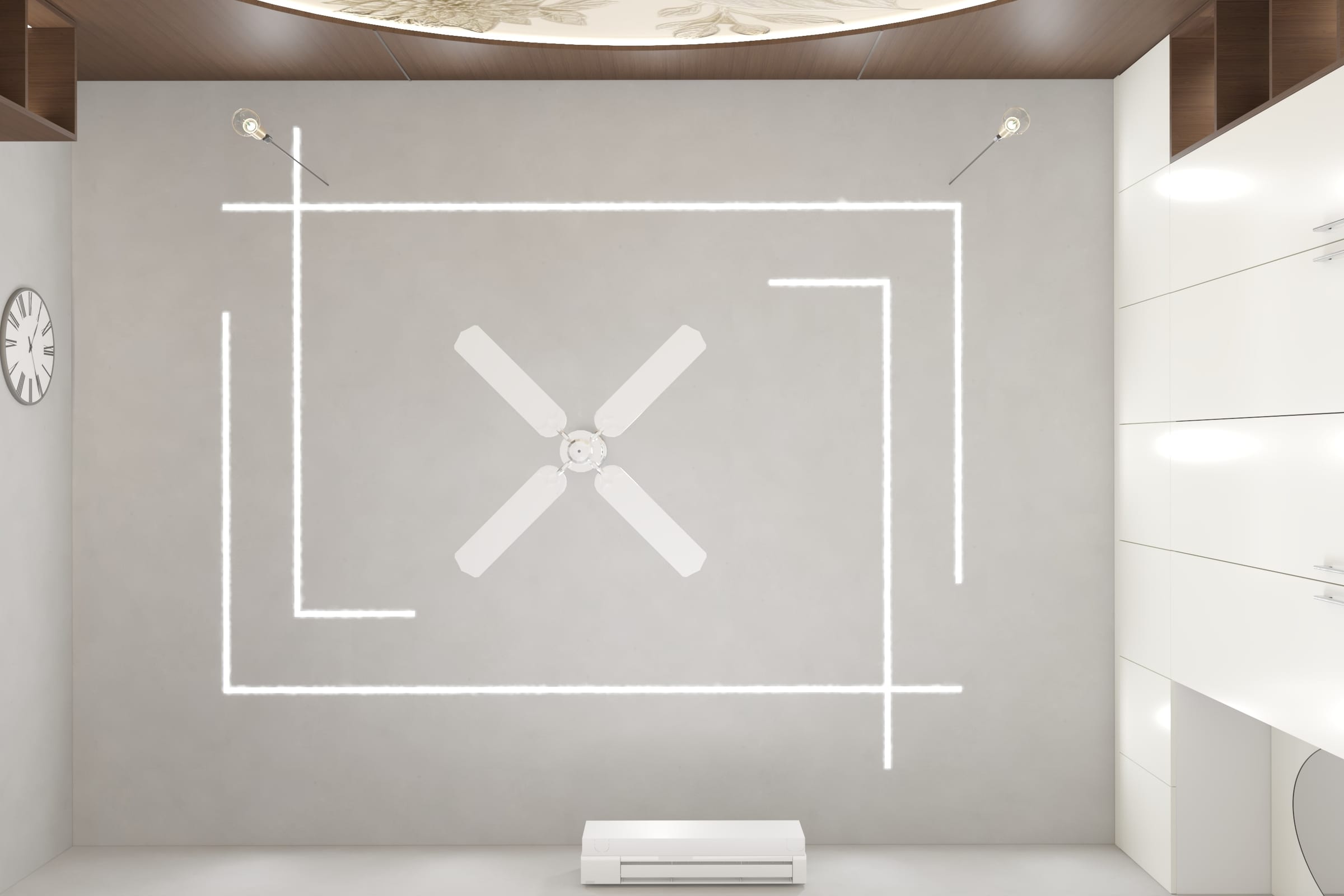

Ceilings get drawn too. The electrician needs the light layout before the false ceiling closes, not after.

Specification

The options, stated plainly.

Most quotes in this trade describe hardware as “imported” and leave it there. Here is what you are actually choosing between.

Software: AutoCAD with 3D visualisation, in-house
Turnaround: First views within a few days of measurement
Revisions: Until you are satisfied

Built in Gorakhpur

3D Design we have completed

All projects

The same wardrobe wall as built, with the oval mirror set on a fluted panel above the dressing table and the display niche lit from within

Karim Nagar · 2026

Master bedroom in Karim Nagar

A bedroom drawn wall by wall and then built: a six-door wardrobe run with a dressing table worked into it, a fluted TV wall, and an arched feature panel lit from behind.

The same kitchen as built, photographed on handover day, with the rose base units and granite counter in place under white and black gloss wall cabinets

Padri Bazar · 2026

L-shaped kitchen in Padri Bazar

An L-shaped kitchen in dusty rose and white gloss on a black speckled granite counter, fitted around the tiling that was already on the wall.

Common questions

About 3d design

How close is the render to the finished room?

Close on geometry, because the drawing is made from our own measurements of your room. Colour and sheen are the honest caveat: a laminate reads differently in your own light than it does on a monitor, so judge finishes from a physical sample rather than the screen. And ask to see the render beside the finished photograph for a job like yours.

Next step

Get a 3d design quote

Send the dimensions and we will come back with a realistic range, then a 3D plan before you commit.
